Making Measurement Groups

Creating Measurement Groups Manually

The imported measurements of the manual_config_2.msop project in the downloadable Tech Topics files are taken with multiple subs at multiple listening positions. The previous step of associating measurements with filter channels tells MSO which measurements belong to which sub. Now we have to tell MSO which measurements belong to which listening position. To do that, we'll add one measurement group for each listening position. Then we'll add measurements to each measurement group to identify the measurements taken at each listening position.

Adding Measurement Groups

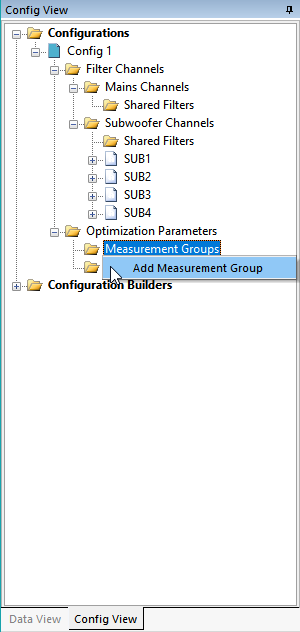

We will first create a measurement group for the POS1 listening position. To add measurement groups to a configuration, right-click on the Measurement Groups node of the configuration and choose Add Measurement Group from the context menu as shown below.

The Measurement Group Properties Dialog

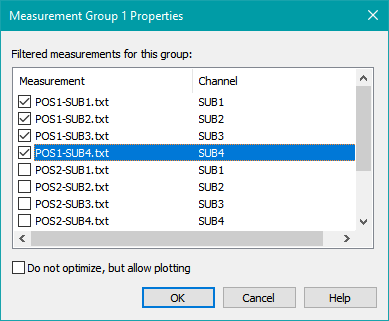

Invoking the Add Measurement Group command as above will cause the Measurement Group Properties dialog to be launched as shown below.

This dialog allows you to select the measurements for the group. Select all the measurements containing the POS1 listening position as shown above, then click OK.

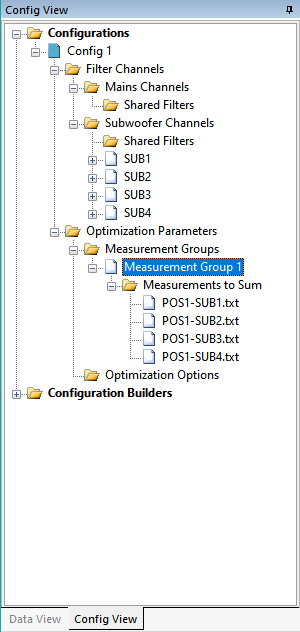

A measurement group with the automatically-generated name Measurement Group 1 will be created as shown below.

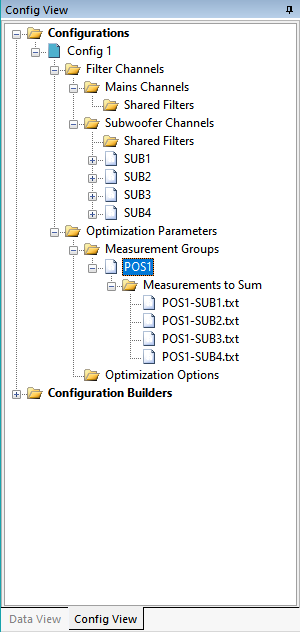

Select Measurement Group 1 and press F2 to edit its name. Enter POS1 for the new name. The result should look as below.

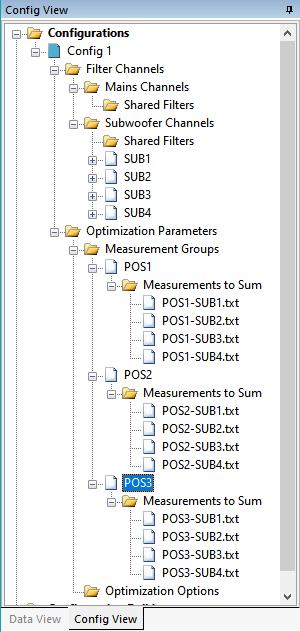

Repeat this process, creating new measurement groups for the remaining listening positions POS2 and POS3. The result should look as below.

Disallowing Optimization of Specific Measurement Groups

When you add a measurement group to a configuration as above, or using the Configuration Wizard, it will by default be optimized when the configuration is. But what if you want plot the frequency response at a given listening position without including that listening position in your optimization? You can do this by disallowing optimization of any measurement group using a context menu. Such a measurement group is referred to as plot-only.

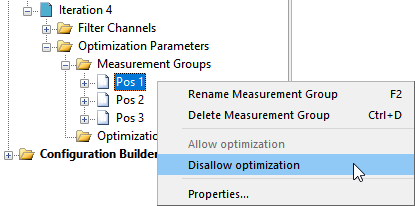

To make a measurement group plot-only, right-click on it and choose Disallow optimization per the image below.

The icon for the measurement group will turn gray, indicating that it's inactive for optimization.

To reactivate it, right-click on it and choose Allow optimization.

Why "Measurement Groups"?

Since we're creating one measurement group for each listening position, it's reasonable to ask why they are named "measurement groups" at all, and not "listening positions".

This name comes from the early days of MSO, which was originally written assuming people would use it to solve much more general problems than what the majority of people actually use it for nowadays. A simple example of a configuration whose measurement groups don't correspond to listening positions is the example of a specialized configuration at the beginning of this topic. For that example, each measurement group corresponds to a combination of main speakers and sub (left plus sub, right plus sub, and left plus right plus sub), with all measurements performed at the same listening position.

MSO can still optimize such unusual configurations that differ from what people would normally consider "multiple subwoofer optimization", though such usage isn't common.
